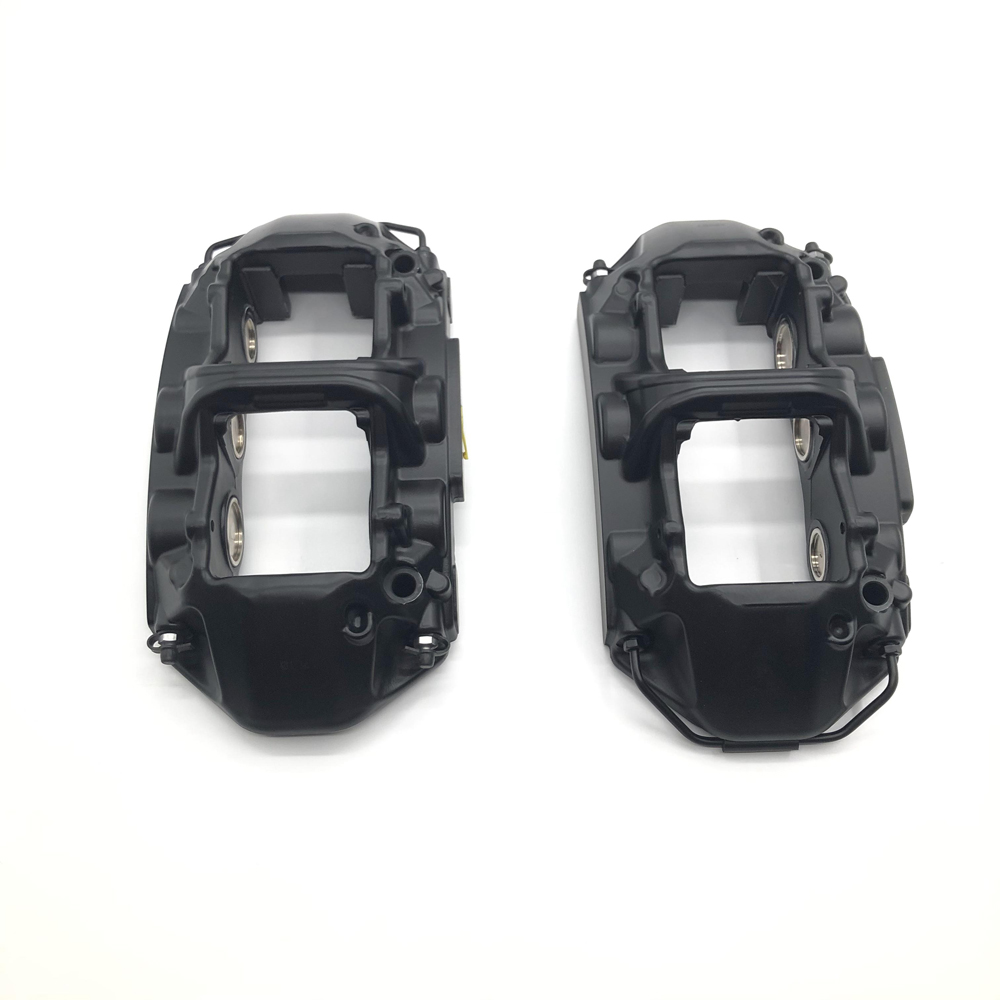

Black GTS6 6 Pistons Calipers For Audi S4 / LC200 / BMW Front
Feature:
Disc size/mm: 355*32, 362*32, 380*34, 405*34
Fit front or rear wheel Size: 18in, 19in, 20in, over 20 in
Function: 50% Improve Brake Performance
Caliper:
Material: One-piece Forged Body
Craft: Aerial 6082 Aluminum Alloy
Piston: 6 big pistons, Made of Aluminum Alloy
Finish Treatment: High-temperature Baking Coating
Product introduction
| Product Name | 6-pots caliper |
| Piston Size | φ38,φ34,φ30 |
| Outline Size | 330x165x98 |
| Brake Power | |
| Max Working Pressure | 13.7MPa |
| Asseblem Location | R/L |
| Assembly Plate Bore Distance | 200mm |
| Brake disc Dia. | 405mm 380mm 365mm 350mm 355mm |
| Disc thickness | 34mm 32mm |
| Structure | monoblock |
| Reference No. | GTS6 |
| Application | Audi, , BMW, , Benz, , Ferrari, 360/430, Chevrolet, Camaro , Benz, AMG/CLS/E/SL, Porsche, 996/997/Turbo/GT3/Cayenne, , Land Rover, |
| Color | yellow red black nature |
How to choose the combination of front and rear brakes
1. Select according to hub size
J value and et value shall be considered at the same time. If the corresponding space of the hub is insufficient, it will interfere and cannot be installed. It is also forbidden to cut the caliper body / hub due to size problems, which is very dangerous.
2.Front wheel refitting idea
15 inch options: Street version 7600 and competitive version 9444
17 inch options: Street version 9200 and competitive version 9440
18 inch optional: Street version 9040 9540 8530 competitive version 9448 9660 9665
Wheels over 19 inches can be selected: Street version 8520 8521 8522 (referred to as 85 series, with different piston area of the same shape)
Street version 9560 9561 9562 (referred to as 95 Series, with different piston areas of the same shape)
3.Rear wheel modification idea (the front wheel shall be determined first, and then the corresponding ratio shall be made)
Front four pistons: 9200 8530 9540 rear two pistons: 5317
Front six pistons: 9040 rear four pistons: 9202 / 7609
Front six pistons: 8520 8521 8522 rear four pistons: 8530 / 8540 / 8560
Front six pistons: 9560 9561 9562 rear four pistons: 9541 / 9542
The collocation needs to follow the first six rear four front four rear two front big four rear small four (the car power needs to be distributed, and so does the braking force)
RFQ
If you need a complete modified caliper kit,Please contact customer service
Please provide:
1. What Car? What year?
2. Wheel hub size? For example, 18-inch 19-inch
3. Modified wheel hub or original wheel hub?
4.Can you give me the Chassis number or frame number(VIN number)?
The above information is used for accurate recommendation of products and accurate quotation
